RS80/RS90/RS100 Smart Angle Targets
The solution for difficult positions

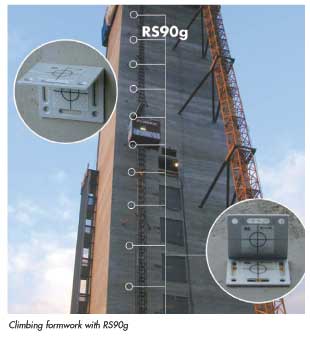

Rothbucher Systeme’s RS80, RS90, and RS100 Smart Angle Targets are the quick, safe way to monitor subsidence in bridges, towers and buildings

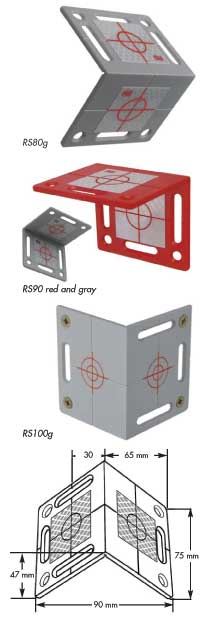

Rothbucher Systeme Smart Angle Targets are 90º angled control monuments, and are perfect for a variety of specialized situations. The RS80s, with two targets, can be pushed into new concrete and shotcrete because the ‘roof’ protects the reflective tape target from oozing concrete. RS90s have three reflective tape targets and are good for marking corners and other axes, as they are a good way to check elevations from two sides of buildings. RS100s are not reflective, and are used as an accurate, highly visible benchmark. All three are easy to attach, and the temperature and UV resistant marker bodies will stay in place permanently, ready to save you time and effort every time you need a horizontal or vertical reference.
Great for backsights, check shots, elevation references and monitoring situations, ‘Smart from the Start’ Rothbucher Systeme markers are the best way to take advantage of your investment in high tech survey equipment. Save crew time, keep employees out of danger, get better data, and feel more secure about construction layout: can you afford not to use Rothbucher Systeme markers?
Smart Angle Targets RS80 & RS90
This plate has an angle of approx. 90 degrees which enables measurements and monitoring to be carried out in difficult surveying locations or when there is a shortage of space.- Various attachment options: "right angle" or "roof-shaped".
- Can be mounted even on difficult surfaces.
- For quick positioning with tachymeter and all common measuring devices.
- For bridge and tunnel construction.
- For the long-term monitoring of bridges and buildings.
- For measuring and monitoring facades - even around corners.
- For industrial construction: permanent measurement points for additions and conversions, alignment of machines, production lines and material handling technology, etc.
- Temperature and UV resistant.
- Transfer of heights and axes around corners and from inside to outside.
Smart Angle Targets RS100
- This plate has an angle of approx. 90 degrees which enables measurements and monitoring to be carried out in difficult surveying locations or when there is a shortage of space.
- Various attachment options.
- Can be mounted even on difficult surfaces.
- For industrial construction: permanent measurement points for additions and conversions, alignment of machines, production lines and material handling technology, etc.
- Temperature and UV resistant.
- Transfer of heights and axes around corners and from inside to outside.
Please note:
Smart Targets with target reflectors are exclusively recommended for carrying out distance measurements using a tachymeter or total station.
Smart targets with cross hairs, and without target reflectors are available for the use with leveling instruments, theodolites and construction lasers.
