MAC-51Bx Magnetic Locator
 The most cost-effective, all purpose locator; a magnetic locator plus a two frequency pipe & cable locator all in one instrument.
|
GA-72Cd Magnetic Locator
 Detects the magnetic field of iron and steel objects and energized power lines. Has the option of nulling or peaking.
|
XTpc Pipe & Cable Locator
 Single Frequency (choice of two options)
Portable Transmitter fits in your pocket
Cost effective feature set for occasional users
|
|
|
|
Pipe & Cable Locators
Schonstedt's locators have been setting the standard for reliability and dependability for nearly a half a century. Schonstedt's Pipe & Cable Locators are extremely effective and versatile tools for locating underground utilities including cable TV lines, fiber optic lines, gas lines, irrigation lines, tracer wire, power lines, streetlight wiring, water lines and sewer.
When you need to find a pipe or cable underground, our locators help you find it faster and easier. Schonstedt products are designed to help endure the rigors of daily field usage in a wide range of environmental conditions.
Pipe and Cable Locators have both a transmitter and a receiver. The transmitter induces an electric charge to an object which is detected by the receiver. The transmitter is like a radio station that's putting out a signal which is picked up by the receiver. Just like radio stations, transmitters use different frequencies.
Schonstedt offers two basic types of pipe and cable locators:
The XTpc : This is the most portable pipe & cable locator with an expandable and retractable body and a pocket-sized transmitter. It is made in two frequencies. The XTpc is the best choice when:
- Locating is done infrequently and simplicity is a plus
- the excavation project is medium to small size
- Distances are relatively short (under 300 ft)
- The environment is rural and less congested
The XTpc is made in two frequencies. In general, 82kHz is useful in tracing gas and water lines while 33kHz is a better choice for tracing electrical lines. The XTpc has a sonde or passive cathodic mode. You select a single frequency before purchase.
The TraceMaster II : The multi frequency TraceMaster II is Schonstedt's most versatile and robust locating tool, and it is the best choice when:
- There is significant volume of locating work
- The underground environment is congested
- Excavation projects are medium to large size
- Terrain and/or soil type is challenging
- Distances are long (over 300 feet)
There are several TraceMaster II options. The top of the line model offers four active frequencies (575Hz, 8kHz, 455kHz), and two passive frequencies (50Hz, 60Hz; optional sonde or cathodic frequency) with a radio link to change frequencies from the receiver like a remote.
Both the XTpc and the TraceMaster II have direction arrows, signal strength and depth readouts, as well as "continuity" or "good connection" indications on the transmitter.
The XTpc is an extremely portable, easy to use locator with a cost-effective feature set. It's an ideal choice for the occasional user. The TraceMaster II is the high-end feature model designed for multiple industries and applications. It's a top of the line workhorse suitable for any locating challenge.

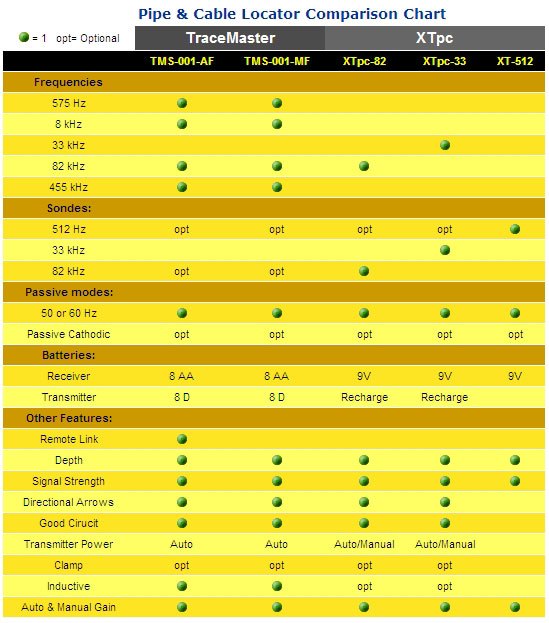

Product Comparison Summary
XTpc
- Single Frequency (choice of two options)
- Extremely Portable Transmitter Fits In Your Pocket
- Cost Effective Feature Set for Occasional Users
TraceMaster II
- Four Frequencies
- Larger Transmitter with Seperate Case
- High End Features for Multiple Applications
These devices can detect pipes and cables up to 20 feet below ground in optimum conditions. They tend to have a practical operating depth of 10 - 15 feet.
