Prices
$29.00
1 - 4
$22.50
5 - 9
$20.50
10 - 24
$18.35
25 or more
Prices
$35.00
1 - 4
$28.00
5 - 9
$26.50
10 - 24
$24.65
25 or more
Prices
$43.50
1 - 4
$37.25
5 - 9
$33.00
10 - 24
$30.45
25 or more
Prices
$29.95
1 - 4
$27.00
5 - 9
$25.75
10 - 24
$23.65
25 or more

Retro Reflective Survey Target Sheeting

Reflective survey targets for numerous applications for surveyors & contractors.

Reflective Monitoring Targets for Surveying & Construction Projects Video

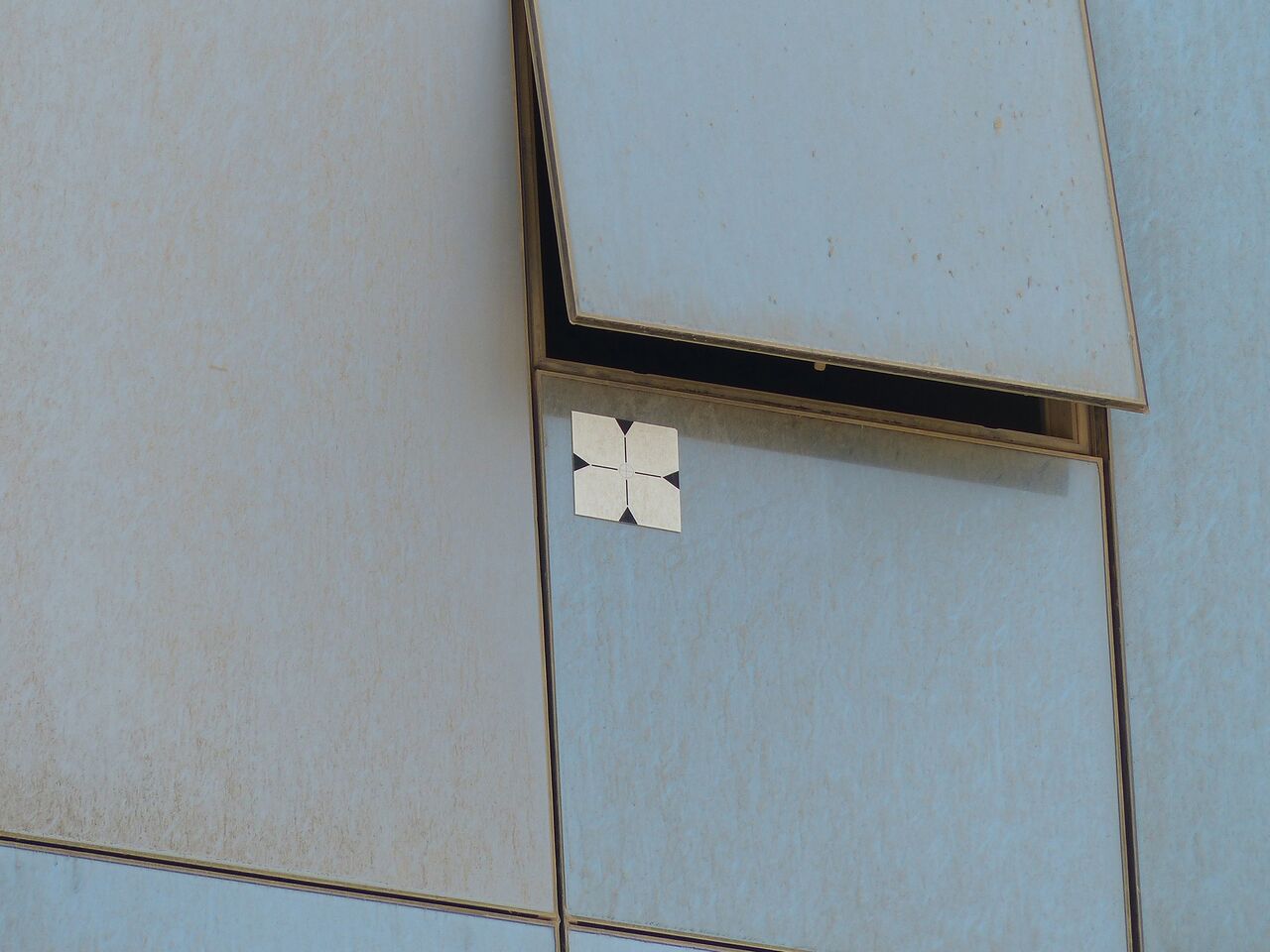

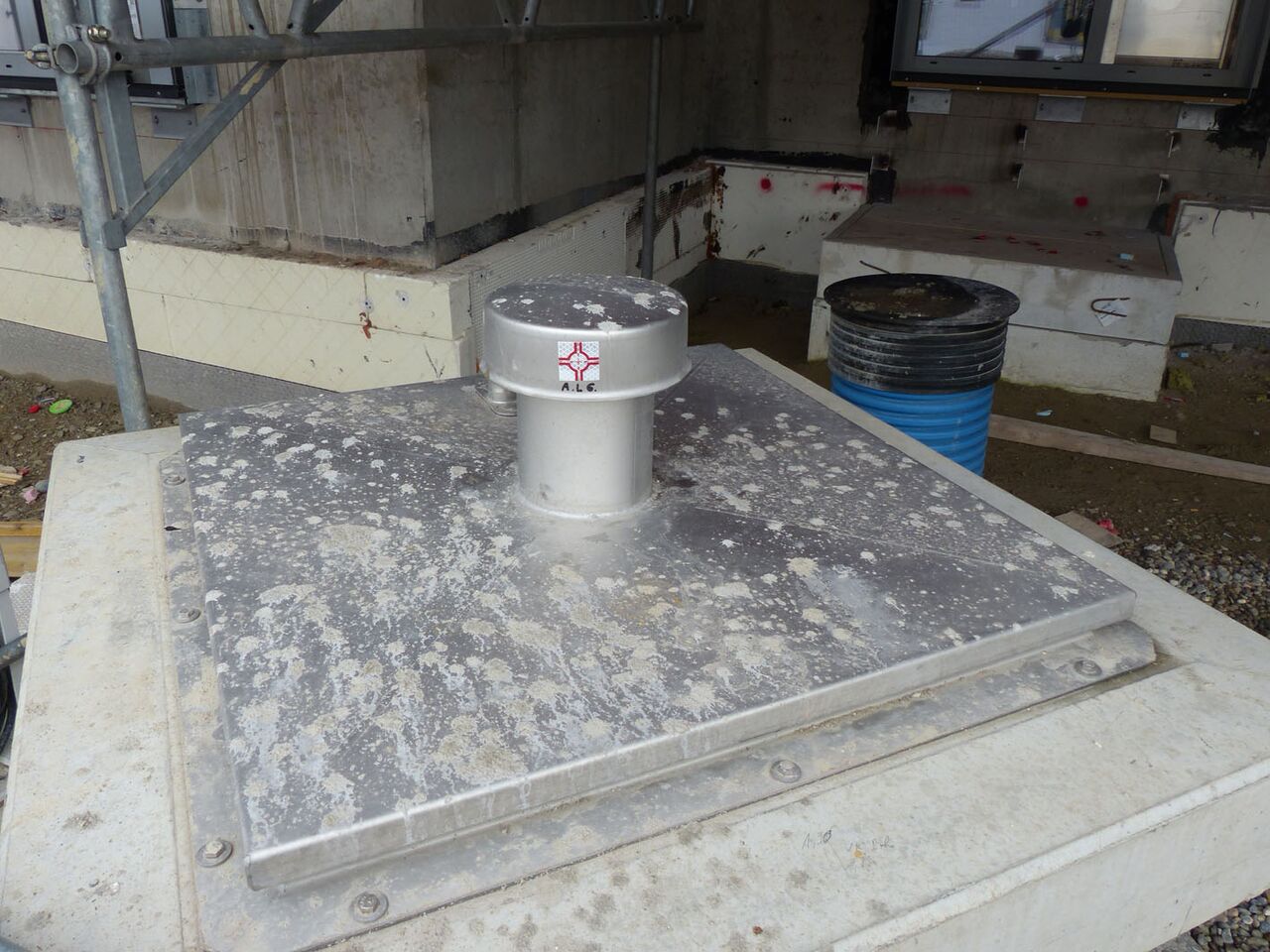

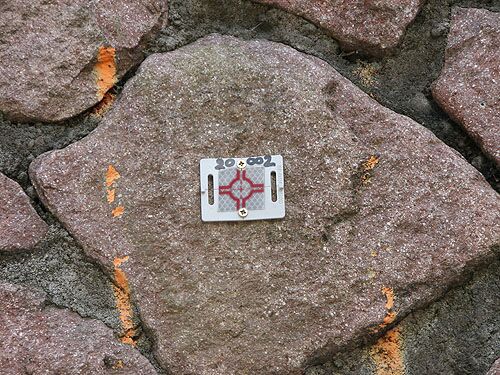

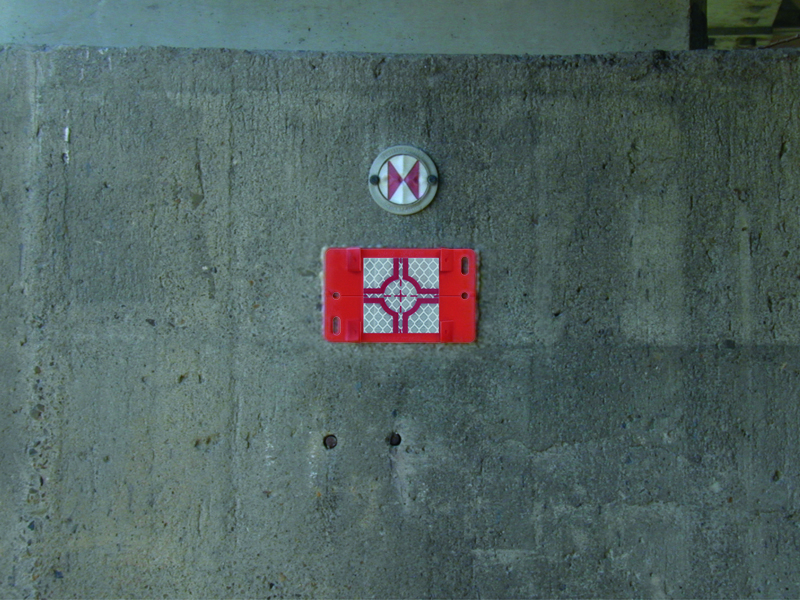

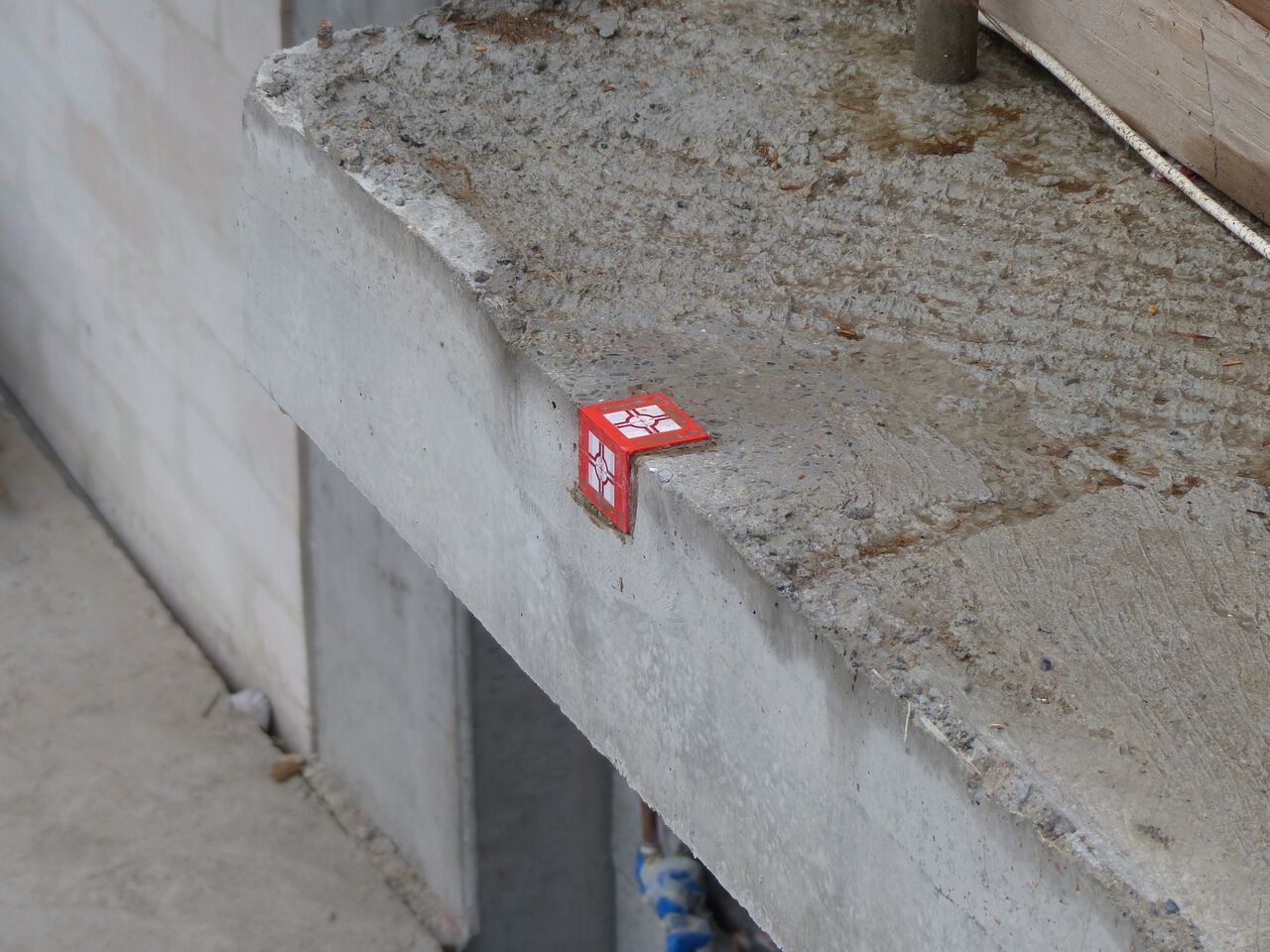

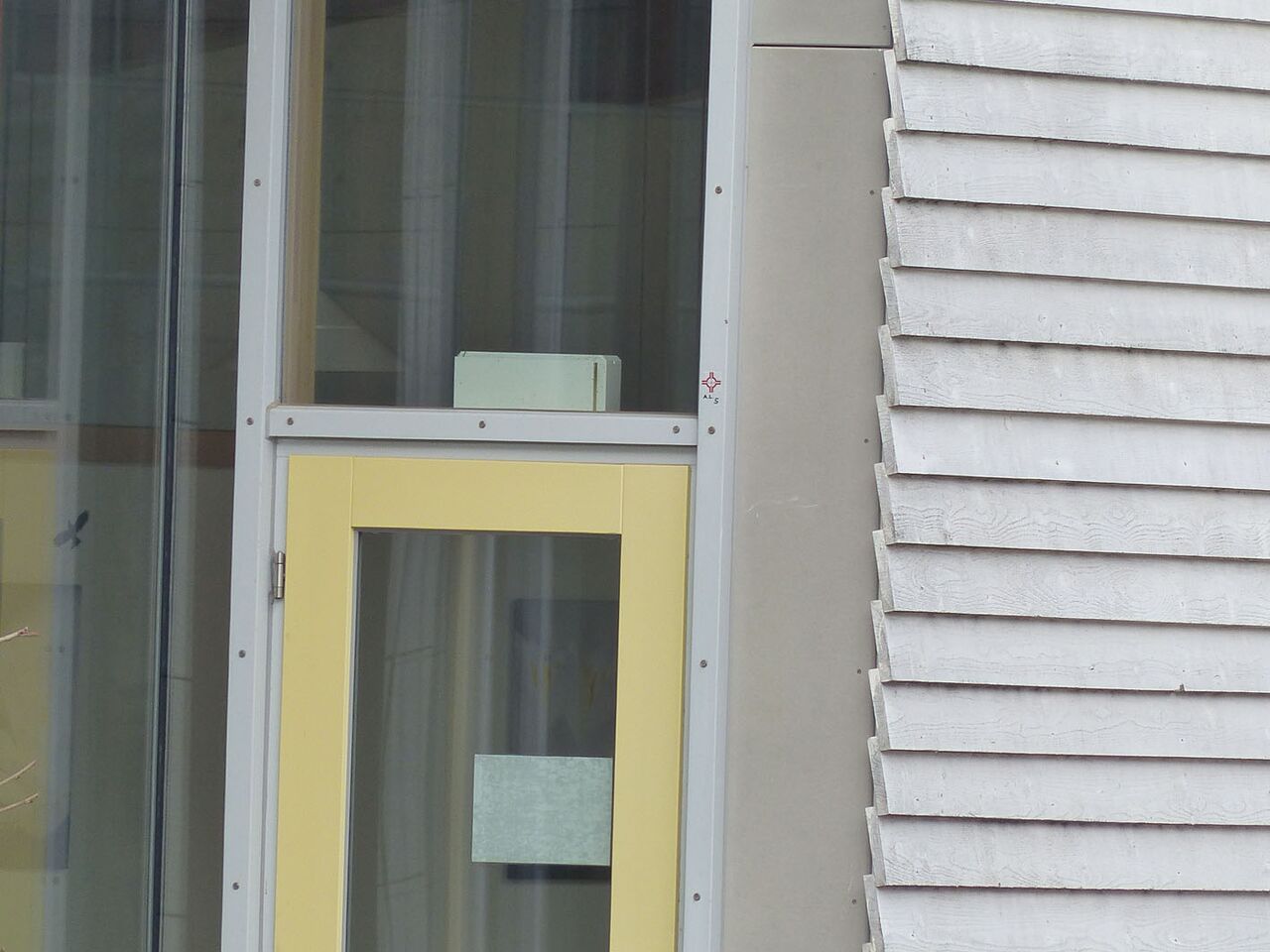

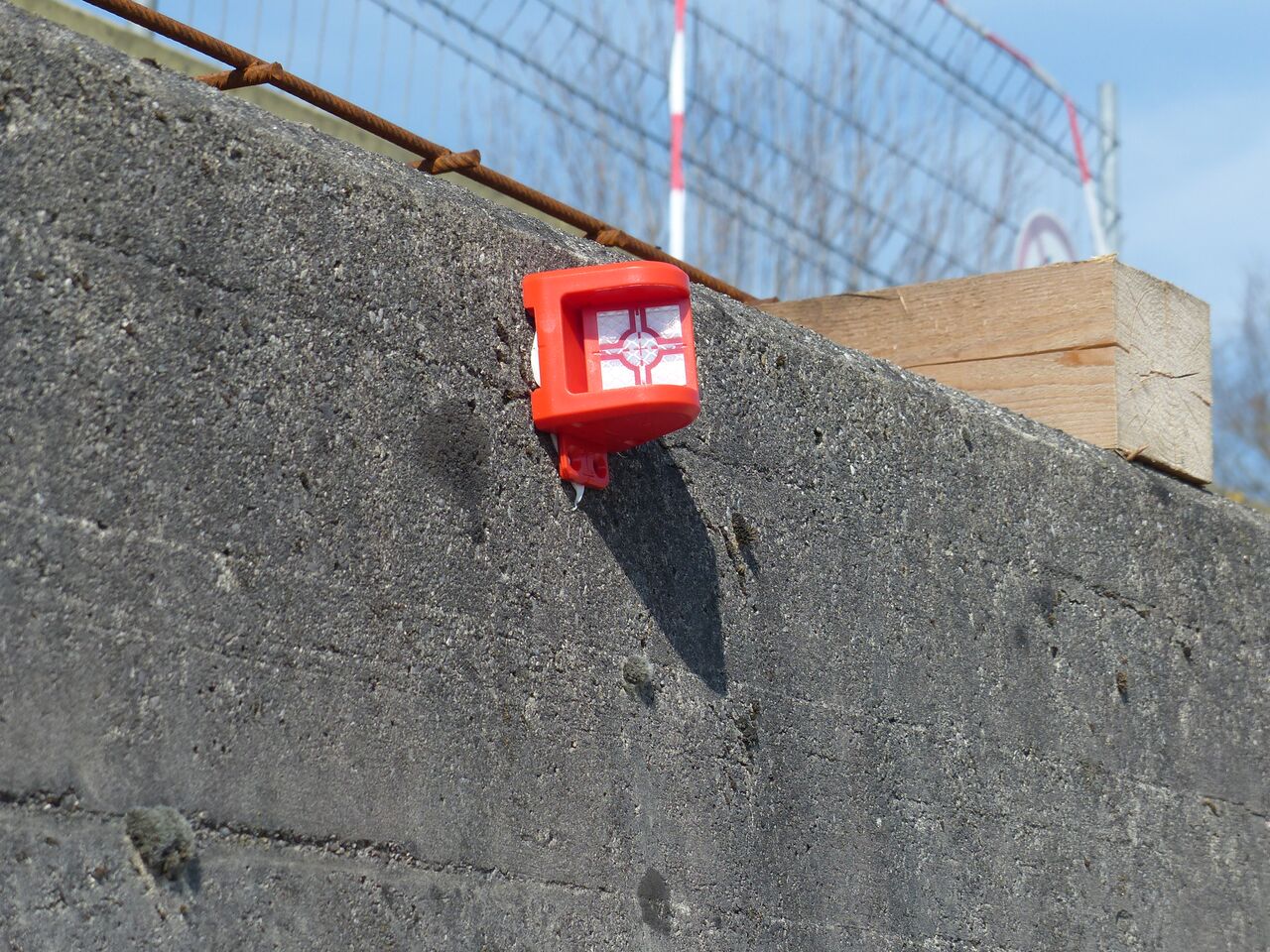

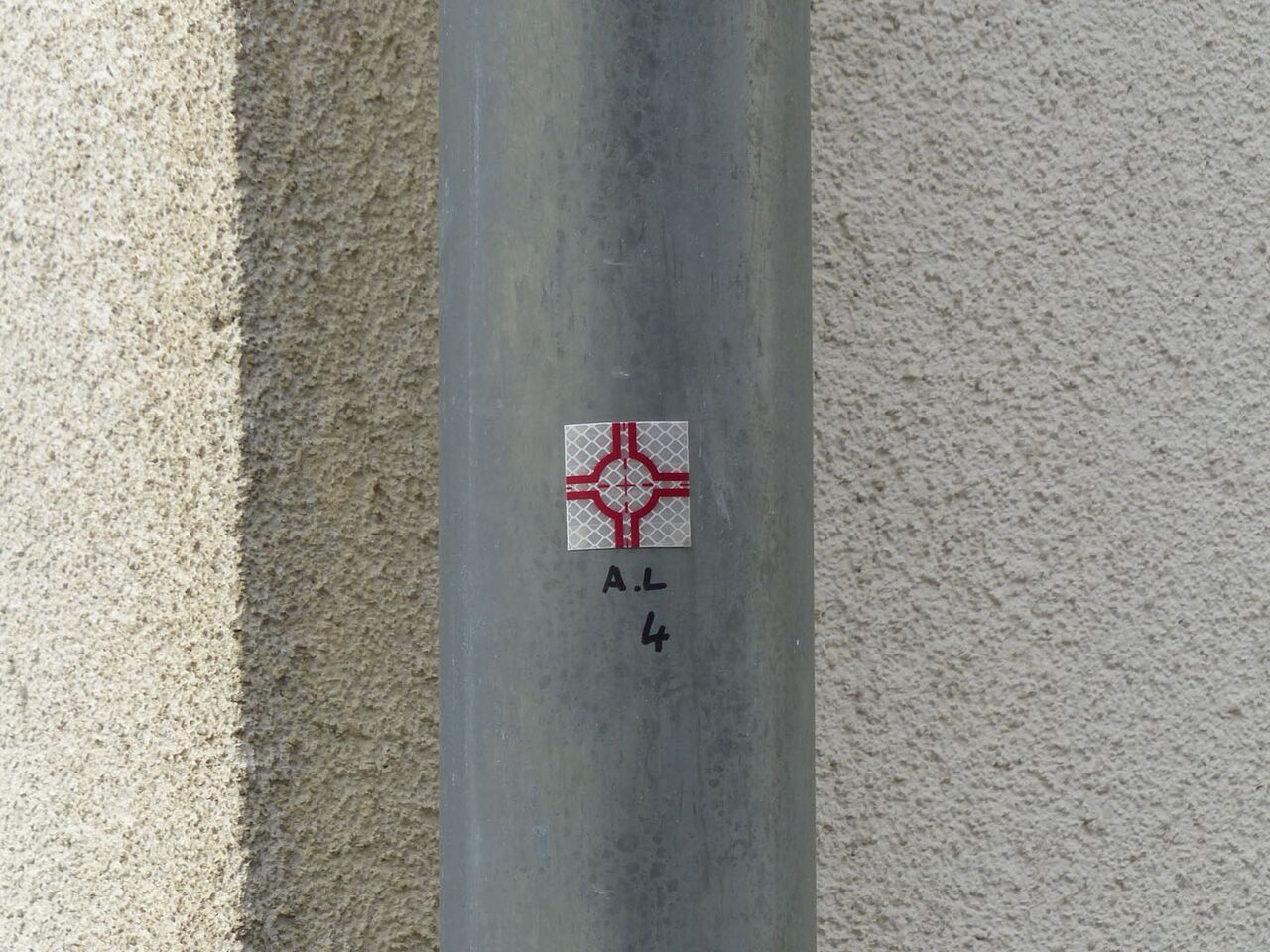

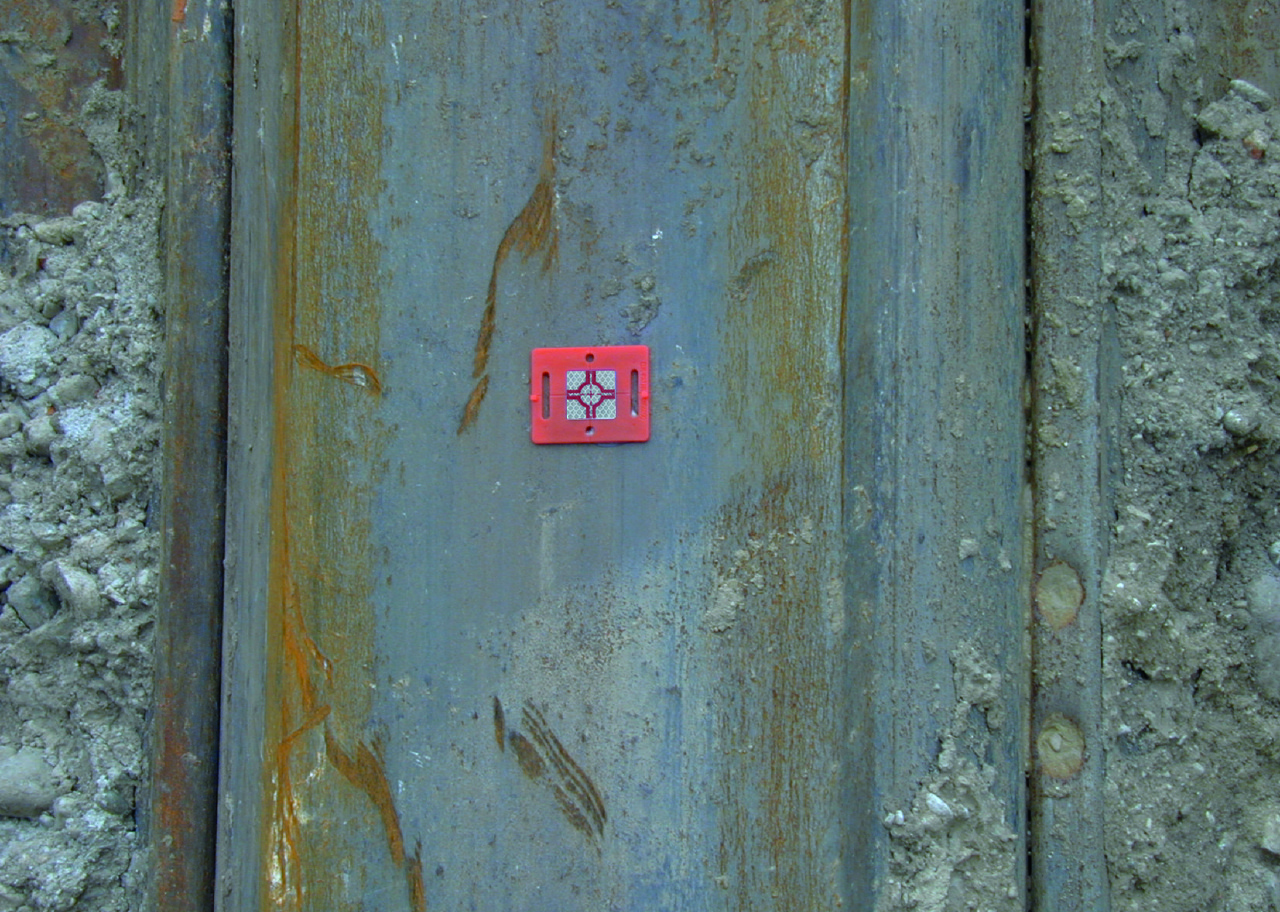

Are you ever coming back? That’s the question you should ask yourself every time you take a total station shot because, if you are coming back—even just once—you’ll thank yourself for setting one of Rothbucher Systeme’s inexpensive, long lasting and efficient Reflective Tape Survey Reflective survey targets used for all distance measurements with tachymeters or total stations.Targets. Rothbucher markers are standard in European construction sites, and are catching on stateside with contractors and surveyors who want to make full use of total station and reflectorless total station technology. The reflective tape gives a good reading from most angles, and the low profile, UV resistant tape and strong adhesive mean that you can take the exact same shot—without prism offset—every time.

 Great for backsights, check shots, elevation references and monitoring situations, ‘Smart from the Start’ Rothbucher Systeme markers are the best way to take advantage of your investment in high tech survey equipment. Save crew time, keep employees out of danger, get better data, and feel more secure about construction layout: can you afford not to use Rothbucher Systeme markers?

 Ranges:

Target reflectors w/ cross hair 20 x 20 mm: range approx.  50 m

Target reflectors w/ cross hair 30 x 30 mm: range approx.  80 m

 Target reflectors w/ cross hair 40 x 40 mm: range approx.  100 m

Target reflectors w/ cross hair 60 x 60 mm: range approx.  120 m

The ranges are average values and will be greatly exceeded by the majority of current total stations, some of them need a minimum distance of 10 meters.

Attention:

It is recommended that only reflective targets are used for distance measurements with tachymeters or total stations.

Targets with cross-hairs (non reflective) are offered specialy for use with auto levels, theodolites and construction lasers.
