Carsonite Utility Posts & Signs

Carsonite Utility Posts - Low-cost, all-purpose pipeline marker for utility cables & pipelines

The primary function of the above ground pipeline markers is to identify utility location and alert those who might be working in the area.  In accordance with the PHMSA, underground pipelines should be marked with permanent pipeline markers in a "line-of sight" fashion to indicate presence and location.  These pipeline markers should also carry the type of pipeline (ex: natural gas ) and contact information of the company that operates the pipeline.

    Carsonite Utility posts for marking buried lines and cables.  Available from www.berntsen.comCarsonite is the perfect choice for high visibility and easy identification of underground utility lines.  This trademarked three-rail design combines structural integrity with above-ground flexibility, as well as protection for decals.  Easy to install and lightweight for ease of transportation.

Anchors (sold seperately) make it virtually impossible to remove the posts without proper equipment.  The marker is highly resistant to vandals, with special composite material that will survive multiple small-caliber gunshots without significant loss of legibility or damage to the post.  2.9 lbs. (6' model). 20 per case.

Installation: Easy installation in virtually all soil conditions.  A pilot hole is rarely required.  Use installation tool RMTLPDR1.

Colors: White (01), Yellow (02), Brown (03), Orange (04), Red (05), Green (07), Blue (08).







Carsonite decals are manufactured from quality U.V. resistant materials which provides a tough weather, vandal and chip resistant finish.Carsonite decals are manufactured from quality U.V. resistant materials which provides a tough weather, vandal and chip resistant finish.

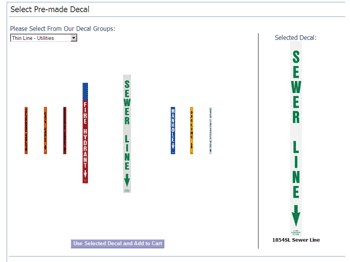

Free Factory Decal Application

Combined with a Carsonite post or marker, these decals create an extremely durable, cost-effective signing system engineered to resist vandalism and harsh environments.  When you purchase Carsonite posts/markers AND any of the decals/sheeting, we'll apply it at the factory at no extra charge.  Be sure to indicate which decal is to be applied to which post when ordering multiple items.  (Applying more than one decal per post will incur an additional charge.)

Carsonite ThinLine Posts - Versatile, durable and highly visible

Carsonite ThinLine posts for marking underground cable and utility lines.Berntsen's Thin-Line Post for utility marking is made of reinforced fiberglass and is lightweight...the 5 foot post weighs less then one pound. This cost effective post is 1 inch in diameter and comes in 5 or 6 foot lengths. It is weather resistant against rot and will not become brittle in the cold. Use to mark a Fiber Optic Line, Water Line, Telephone Cable or Electric Cable.  Recommended burial depth is 24 inches.

Installation: Easy installation in virtually all soil conditions.  A pilot hole is rarely required.  Use installation tool TLPDRV.

Colors: White (01), Yellow (02), Brown (03), Orange (04), Red (05), Green (07), Blue (08).

Combined with a Carsonite post or marker, these decals create an extremely durable, cost-effective signing system engineered to resist vandalism and harsh environments.Carsonite decals are manufactured from quality U.V. resistant materials which provides a tough weather, vandal and chip resistant finish.

Free Factory Decal Application

Combined with a Carsonite post or marker, these decals create an extremely durable, cost-effective signing system engineered to resist vandalism and harsh environments.  When you purchase Carsonite posts/markers AND any of the decals/sheeting, we'll apply it at the factory at no extra charge.  Be sure to indicate which decal is to be applied to which post when ordering multiple items.  (Applying more than one decal per post will incur an additional charge.)
